SN505 Plummer Block Housing
SN505 Plummer block housing detail Specifications
Housing material: gray cast iron or ductile iron

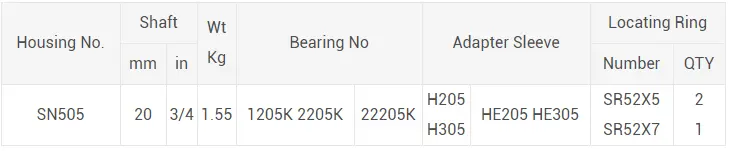

SN series two bolt split pillow block housing suitable for self aligning ball bearings and spherical roller bearings and adaptor sleeve mounting

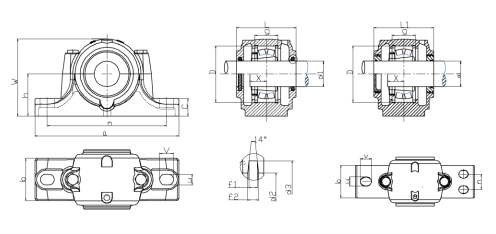

Main Dimensions
Shaft Dia (di): 20 mm
D (H8): 52 mm
a: 165 mm
b: 46 mm
c: 22 mm
g (H12): 25 mm
Shaft Center Height (h) (h12): 40 mm
L: 67 mm
W: 75 mm
Mount Hole Center To Center (m): 130 mm
s: M12
u: 15 mm
V: 20 mm
d2 (H12): 21.5 mm
d3 (H12): 31 mm
Fi (H13): 3 mm
f2: 4.2 mm
Application
Made from high-quality materials, the SN505 housing resists wear, which is critical in environments where heavy loads and extreme conditions are the norm. Its rugged construction not only extends the life of the bearing, but also minimizes maintenance requirements, allowing for uninterrupted operation in critical applications.
Introducing the SN505 bearing housing - the ultimate solution for the bearing needs of demanding industries such as metallurgy, mining and conveyor systems. Designed for durability and reliability, the SN505 can withstand the harshest conditions while ensuring optimal performance.

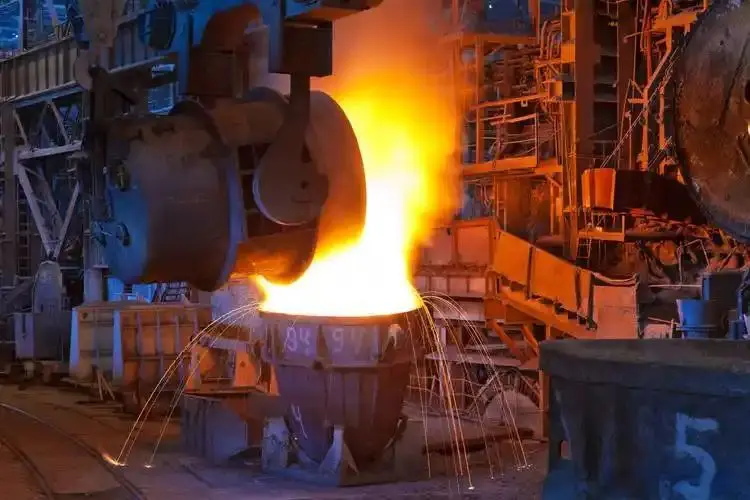

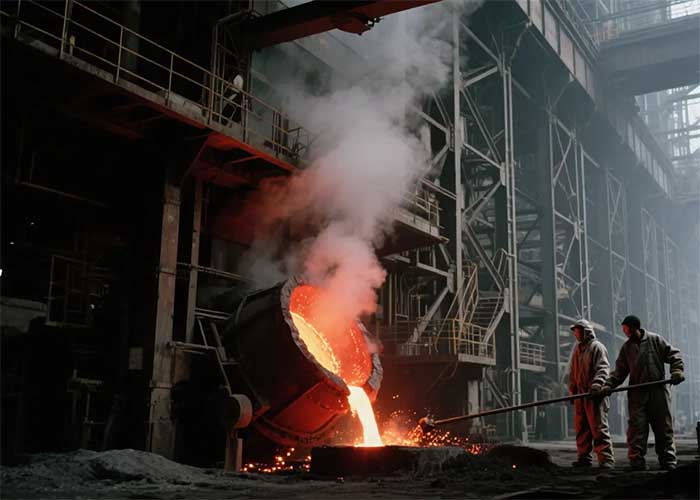

In the metallurgical and mining industries, where equipment is subjected to tremendous pressure and abrasive materials, the SN505 provides a reliable housing solution that protects bearings from contamination and ensures smooth operation. Its innovative design facilitates installation and alignment, reducing downtime and increasing productivity.

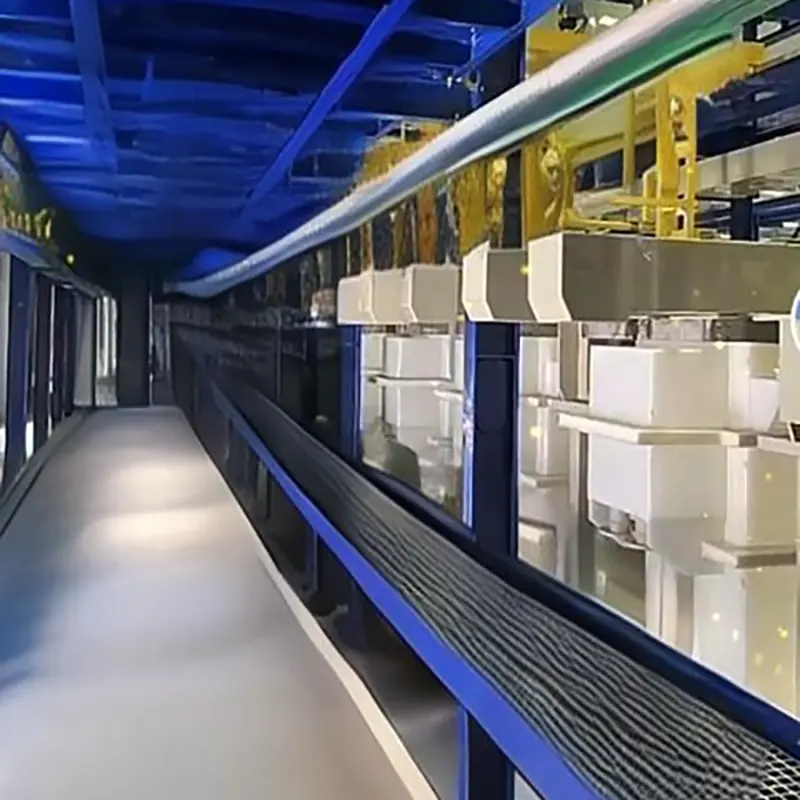

In addition, the SN505 bearing housing is an excellent choice for conveying systems where efficiency and reliability are critical. Its ability to accommodate a wide range of bearing types allows it to be flexibly adapted to different applications, ensuring your conveying system operates seamlessly.
Environmental protection is also an important consideration in today’s industrial sector. The SN505 is designed with sustainability in mind, using materials and processes that minimize environmental impact. By choosing the SN505, you are not only investing in a high-performance product, but also contributing to a greener future.
